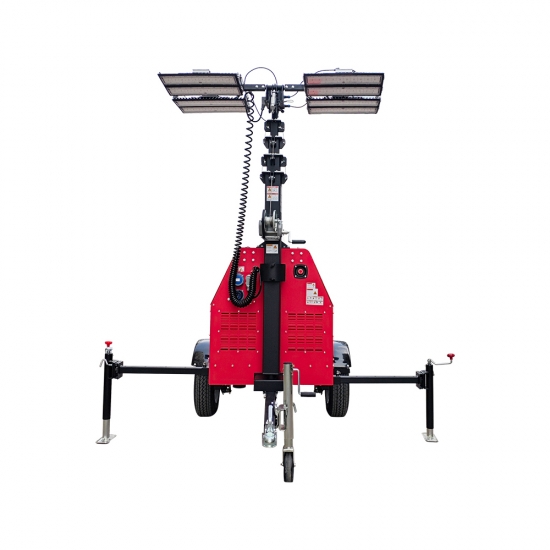

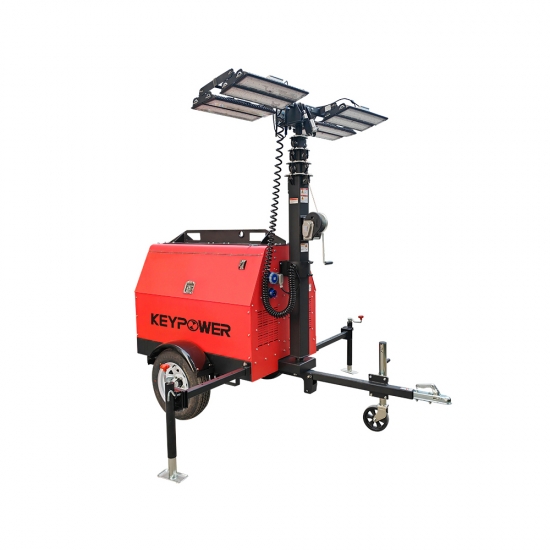

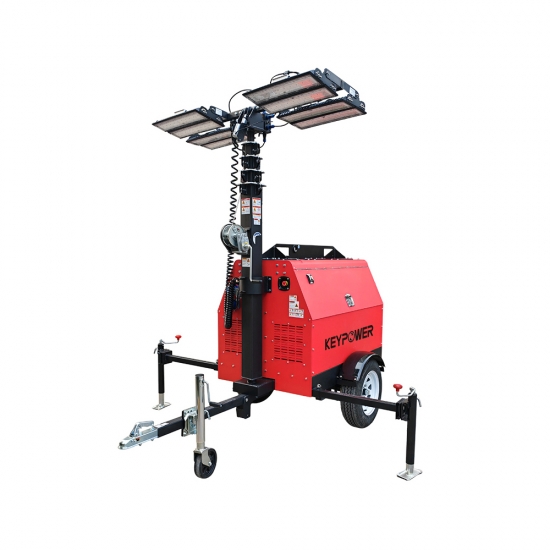

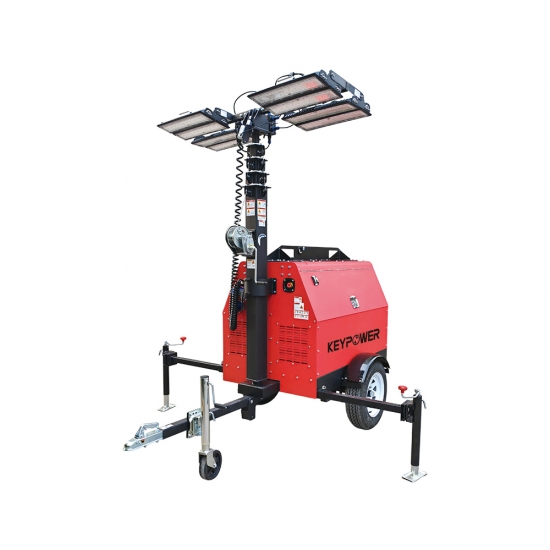

KPLT-L1600E Mobile LED Light Tower Mobile Lighting Tower Manufacturer & Supplier

Product Details Dimensions   Length 3200mm Width 1630mm Height 2750mm Full extending height 9 Mast & Lights   Type of Lights LED Light's fixture Oval Luminous flux 21000*4 LM/light Number & power of lights 4x150W Number of mast sections 6 Mast extension Manually Battery pack   Working Voltage DC24V Battery Type Colloidal battery Battery capacity 4x200AH Charging time About 10hrs (0% -100%) Battery lifespan 1000 cycles Solar panel   Solar panel power 3*470W Types of solar panels Monocrystalline silicon solar panels Rating voltage (V) 220 Alternator insulation Solar panel deployment method Control System   Control Type Manual switch Control method Manual Control All lights are on, no separate control is required Add 24V output line to monitoring platform Trailer   Trailer suspension & axle with brakes Leaf springs & single axle without brake Tow bar Retractable & adjustable supporting wheel tow bar Stabilizing legs & number 4 pcs extendable bar with manually retractable jacks Wheel's rim size & tires 14" rim with regular tires Tow adapter 2" or 50 mm ball adapter Tail light Tail reflector Max towing speed 60km/h Charging method   Working hours 12-16H Additional Features   Packaging size 220*163*233cm Weight 1180KG Wires & electric components Regular Max. # of units loading in 40’ high container (Some components would be detached) 7 Max. against wind when fully extended 20m/s Standard colour orange or yellow canopy, black chasis, galvanized masts, tow bar & stabilizing legs

Dimensions   Expand Working Dimension 2900*3300*9000mm Package Dimensions 1920*1160*2420mm Full extending height 9m Gross weight 1200kg Max. # of units loading 10 units / 40HQ Engine   Engine model KUBOTA（D1105） Speed(rpm) 1500 Number of cylinders 3 Engine characters 4 cycles,Watercooled diesel Combustion System E-TVS Engine aspiration Naturally aspirated Alternator   Standard configuration SPARKS Frequency(Hz) 50/60 Rating voltage (V) 220 Alternator insulation Class H Alternator protection grade IP67 Mast & Lights   Type of Lights LED Light's fixture Oval Luminous flux 52000LM*4 Number & power of lights 400W*4 Number of mast sections 8 Mast extension Hydraulic Mast rotation Manually,Max.359° lockable Light tilt Electric Trailer   Trailer suspension & axle with brakes Leaf springs & single axle without brake Tow bar Retractable & adjustable supporting wheel tow bar Stabilizing legs & number 4 pcs extendable bar with manually retractable jacks Wheel's rim size & tires 14" rim with regular tires Tow adapter 2" or 50 mm ball adapter Tail light Tail reflector Max towing speed 80km/h Additional Features   Fuel tank Type Rotational moulding plastic Fuel tank capacity 110 liters (28 US gallons) Operating hours with full fuel 65 hours Wires & electric components Regular Generator starting type or controler Key starting Max. against wind when fully extended 20 m/s Acoustic pressure 72dB(A) at 7 meters away Standard colour orange or yellow canopy, black chasis, galvanized masts, tow bar & stabilizing legs

Product Details Dimensions   Expand Working Dimension 2220*1710*7500 mm Package Dimensions 1396*1090*2050 mm weight About 280KG Max. # of units loading 34 pcs / 40HC AC Distribution   Circuit Breaker Size 32A Voltage and frequency 110 & 270V/50 & 60hz Mast & Lights   Max Height 7.5m Lifting Winch manual manual crank single Sections 5 Rotation  360degree The automatic brake of the hoist winch YES Construction galvanized Wind Rating 80km/h Bulb Type LED Lights-Power 4x150W Total lumens 4x19500Lm Lighting area 4800sqm Protection Level lP65 Cable KG XL 2x2.5- 300 meters Coverage Per Power 3000sqm Current of a single LED lamp Single phase 0.64A depending on the power of the lamp it fluctuates Electric outlet Single phase 2.56(0.64*4)A Trailer   Supporting wheel 1 qty Tires-Size 3.5x8 (0.89x2.03)in(cm) Transport wheel 2 qty Tires-Size 3.5x16 (0.89x4.06)in(cm) Handles 2 qty Max Towing Speed 45km/h Windproof class 72km/h Forklift holes 4 qty Lifting holes 4 qty

Dimensions   Expand Working Dimension 2804*2564*7500mm Package Dimensions 1850*1250*1780mm Weight 540KG Max. # of units loading 24 units / 40HQ Engine   Engine model KP188FE  engine Engine power 6.9kW Cooling system air cool Fuel Type DIESEL  Bore*Stroke(mm) 88*90 Displacement  2L Speed 3600RPM Alternator   Power  6KW  Voltage and frequency 110 & 270V/50 & 60hz Phase single Output 220V AC Excitation model  Brush self excitation Mast & Lights   Max.Height 7M telescoping rotating tower Sections 5 SECTIONS Feature Rotation of the tower 360 ° Lifting system MANUAL Fooldlight LED Lamp 4x400w Total lumens 4x48000lum Control Panel   Brand SMART GEN 5 Start style Electric start Digital Hour meter YES Operation monitoring YES Fuel System   Material polyethylene Capacity 120L Consumption  260g/kwh Continuous working time 70 hours Protect   Windproof class ＜88KM/H Max towing Speed 45KM/H Warning light yes

Total testing capacity ranges from 0kw to the 400kw consisting of 10kw, 20kw, 50kw, 100kw load setting switches plus a 0-10kw fine-tuning knob. From 0kw to the 400kw, any load combination is achievable. Load step resolution is 10kw.
